VRTogether was present at VRDays Europe 2020, showcasing the world’s first live 3D video conference, using point clouds, over a commercial 5G network. VRTogether partners CWI and Sound presented a live demo to demonstrate the potential of the platform for emergency healthcare services. The demo showcased volumetric video conferencing (based on point clouds) between a doctor, in a medical examination room, and an (acting) injured patient outside in the street.
Diagram of the Demonstration
The doctor was captured at the VRDays stage using Azure Kinect cameras. In the same stage the experience was captured by a virtual camera, projected on a big screen and broadcasted in real time. The patient joined the session outside near Science Park in Amsterdam, was captured with a Samsung S20 Ultra 5G smartphone, and streamed over the standard 5G network of KPN in real-time.
The capture application on the phone uses the depth and color cameras to capture depth and color frames. After applying some alignment transformations, a point cloud is computed using the information on both frames. For the demo, we used a depth resolution of 240x180 pixels which turned into an average of 20.000 points per frame. The streaming was performed at 20fps, which turns into a 51.2 Mbits/second stream, too big for streaming over a 4G network (typical uploading velocity around 25Mbits/s), but enough for a 5G network (even at 700MHz).

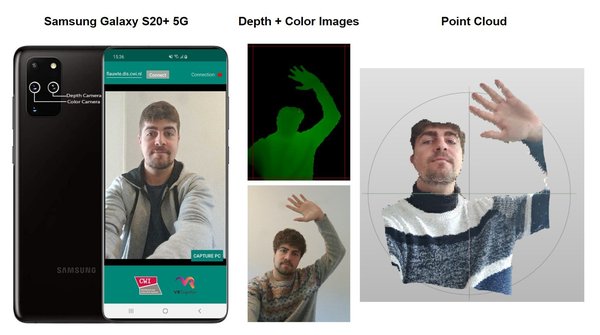

Capturing point clouds from a mobile phone
Characteristics of the 5G Network around Science Park in Amsterdam
The VRTogether platform was used for orchestrating the experience. In the project we have developed an end-to-end pipeline for the delivery of volumetric video, as point clouds. The platform has three unique characteristics: it provides a real-time experience, so we can explore new forms of communication and collaboration using volumetric video; it allows for optimization mechanism based on the context of interaction and human behavior; and it is extensible so the technical components (capturing, compression, delivery, rendering) can be customized depending on the needs of the interaction. The platform uses an award winning compression algorithm for point clouds developed by the Distributed and Interactive Systems group at CW
VRDays is the leading European conference and exhibition on Virtual, Augmented and Mixed Reality content, creativity and innovation. The event took place at Amsterdam’s De Kromhouthal on Wednesday, 4th of November.
CWI’s Distributed and Interactive Systems research group focuses on facilitating and improving the way people access media and communicate with others and with the environment. They address key problems for society and science, resulting from the dense connectivity of content, people, and devices. The group uses recognized scientific methods, following a full-stack, experimental, and human-centered approach.
